PCh7 Lec4

3D Rotation (Sec 7.3)

Okay, just like every other quantum system that we have been working with, we must define the Hamiltonian operator (total energy operator), find an acceptable solution for the eigenfunctions, and then determine the eigenvalues (total energy). Because we are working in 3D, it is not real convenient to use x, y, and z, so like 2D rotation, we are shifting over to define the system in terms of spherical polar coordinates (spc).

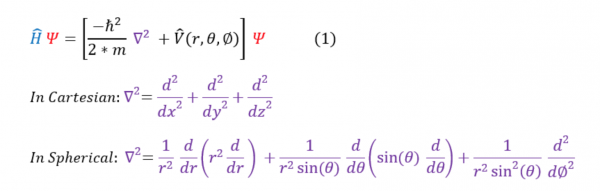

At this stage of QM, we introduce a new term called the Laplacian, an upside down triangle;

Note that the entire Schrodinger Equation is shown in your text in eq. 7.17. Spend a little time comparing eq. 7.17 to the Hamiltonian equation above...note to following:

- the 1/r^2 has been factored out of the expression in eq. 7.17,

- "m" has been replaced with "μ" the reduced mass in eq. 7.17, and

- the potential energy term is zero.
