Exercise 3 - Study of Rotation Barrier Energy about Carbon-Carbon Bonds

Coordinate Scan of Ethane

- Build ethane, C₂H₆. You can choose to add hydrogen by selecting H from the periodic table or by allowing WebMO to do it for you when it cleans up the structure. Remember to symmetrize if necessary (if symmetrize icon is red, click it).

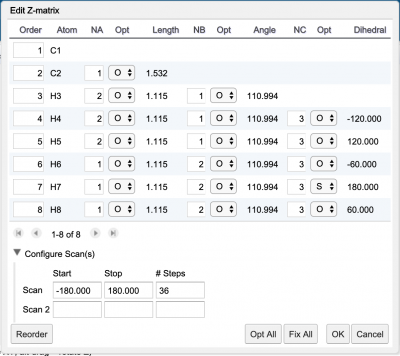

- Before submitting this job, choose Tools > Z-matrix to open the Z-matrix Editor window. In this window, each atom is numbered. The corresponding number appears on the molecule sketch in the Build Molecule window. Identify the two H atoms that form a dihedral angle (H-C-C-H) of 180°. In my case, but maybe not yours, my atoms were numbered 7H-1C-2C-3H. It may help to rotate the molecule. In the pull-down menu to the right of this listed dihedral angle, choose “S” which stands for "scan."

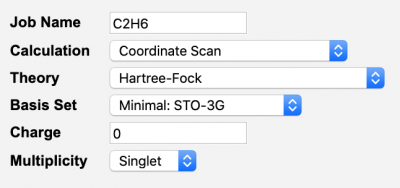

- Setup the job as shown below and submit...what you are asking the computer to do is calculate/minimize the energy for 36 different dihedral angles (36 calculations).

- Once the job is complete, click on the hyperlinked name to open the “View Job” window.

- Scroll down to the Coordinate Scan table and click on the magnifying glass on the table title bar; a "coordinate scan" window opens showing the plot of Energy vs. dihedral angle. You can switch between a molecular view and the graph using the tabs on the window.

- Again, scroll down to the very bottom of the Coordinate Scan table and change the "Loop" to "Cycle", then click on the "film strip" icon at the very top of the coordinate Scan table. While the molecule is stepping thru all of the calculated structures, note the energy is shown in the bottom left corner.

Does the graph make sense? Do you recall gauche and anti conformations?

Coordinate Scan of 1,2-difluoroethane

Repeat the above for 1,2-difluoroethane.
